I.C.U Mechanical Bed (Imported type)

Model No. BS 2000N

FEATURES:

  • Four pieces individual side-rails, ABS moulded.

  • Heavy ABS Head & Foot Panel with locking & corner buffer.

  • Framework amde-up of M.S. Tubes.

  • 4 section top made up of oval perforated CRCA M.S. Sheet.

  • Bed mounted on 5" castors, 2 with brakes.

  • S.S. Telescopic I.V. Rod with 4 location.

  • Holder for Urine Bag.

  • Finish: Pretreated & Epoxy powder coated.

  • Overall approx size : 2090L x 910W x 625-820H mm.

  • Positions obtained by Smooth Crank system with foldable handle.

  • Hi-Low

  • Backrest elevation

  • Kneerest ekevation

  • Trendlenburg / Reverse Trendlenburg

MARKETING 46.PNG

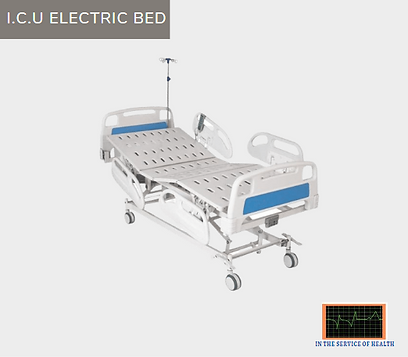

I.C.U Electric Bed

Model No. BS 2000E

FEATURES:

  • Advance linear actuator system [04 pcs motor, 01 pc control box, 01 pcs handset]

  • Four pieces individual side-rails, ABS moulded.

  • ABS moulded head & foot panel with locking & corner buffer.

  • Framework made-up of M.S. Tubes.

  • 4 section top made-up of Oval perforated CRCA M.S. Sheet.

  • Bed Mounted on 5" castors, with 2 brakes.

  • S.S. Telescopic I.V. Rod with 4 location.

  • Holder for urine bag.

  • Sitting position adjustable.

  • Finish : Pretreated & Epoxy powder coated.

  • Overall approx size : 2090L x 910W x 460-700H mm.

  • Positions obtained by Hand Remote

  • Hi-Low

  • Backrest elevation

  • Kneerest elevation

  • Trendlenburg / Reverse Trendlenburg.

MARKETING 47.PNG

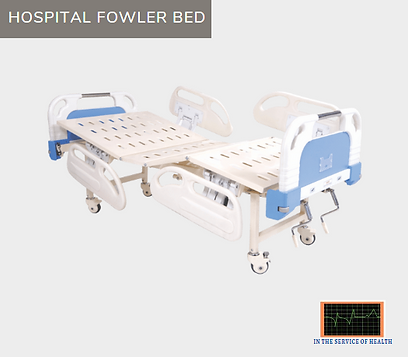

Hospital Fowler Bed

Model No. BS 2002N

FEATURES:

  • Four pieces individual side-rails, ABS moulded.

  • ABS moulded Head & Foot panel with locking & corner buffer.

  • Framework made up of M.S. Tubes.

  • 4 section top made-up of oval perforated CRCA M.S. Sheet.

  • Bed mounted on 4" Castors, 2 with brakes.

  • Four location for I.V. rod.

  • Finish: Pre-treated & Epoxy powder coated.

  • Overall approx size : 2090L x 910W x 600H mm.

  • Positions obtained by smooth crank system with foldable handle.

  • Backrest elevation

  • Kneerest elevation

MARKETING 48.PNG

Hospital Fowler Bed Electric

Model No. BS 2002E

FEATURES:

  • Advance linear actuator system [02 pcs motor, 01 pc control box, 01 pcs handset]

  • Two pcs individual detachable side-rails, stainless steel.

  • ABS moulded head & foot panel with locking & corner buffer.

  • Framework made-up of M.S. Tubes.

  • 4 section top made-up of oval perforated CRCA M.S. Sheet.

  • Bed mounted on 4" castors, 2 with brakes.

  • Finish : Pre-treated & Epoxy powder coated.

  • Overall approx size : 2090L x 910W x 600H mm.

  • Positions obtained by smooth crank system with foldable handle

  • Backrest elevation.

  • Kneerest elevation.

MARKETING 49.PNG

I.C.U Hi-Lo Mechanical Bed

Model No. BS 2001 ECO PLUS

FEATURES:

  • Frame work made of rectangular M.S. Tube.

  • Four section top made of perforated M.S. Sheet.

  • Back rest, Knee rest.

  • ABS moulded Head & Foot panels.

  • Collapsible aluminium safety site railings.

  • SS IV rod with four locations.

  • Bed mounted on 150 mm Dia Castor (2 with 6 area).

  • Overall size : 210L x 90W x 60-80H cms.

  • Finish : Epoxy powder coated.

MARKETING 50.PNG

Hospital Plain Bed (General)

Model No. BS 2005

FEATURES:

  • Frame work made of rectangular M.S. Tube.

  • Top made of welded wire mesh.

  • Tubular Head & Foot.

  • Bows of unequal height.

  • Locations for eighty four I.V. Rod.

  • Overall size : 184L x 90W x 60H cms.

  • Finish : Epoxy powder coated.

MARKETING 51.PNG

Hospital Plain Bed Delux

Model No. BS 2005A

FEATURES:

  • Frame work made of rectangular M.S. Tube.

  • Top made of perforated CRCA MS sheet.

  • ABS moulded Head & Foot panels.

  • Locations for four I.V. Rod.

  • Overall size : 198L x 90W x 60H cms.

  • Finish : Epoxy powder coated.

MARKETING 52.PNG

Pediatric Bed

Model No. BS 2006

FEATURES:

  • Main frame of rectangular pipe.

  • Perforated CRCA sheet top.

  • Tubular head & foot bows of equal height with vertical tube supports.

  • Drop down type safety side railings.

  • Size : 137L x 76W x 60H cms.

  • Epoxy powder coated.

MARKETING 53.PNG

Hospital Attendant Bed

Model No. BS 2006A

FEATURES:

  • Frame work made of rectangular M.S. Tube.

  • Fitted with perforated CRCA sheet top.

  • Stainless steel tubular Head & Foot bows.

  • Legs fitted with PVC stamps.

  • Overall size : 167L x 60W x 40H cms.

  • Epoxy powder coated.

MARKETING 54.PNG

Patient's OPD Couch

Model No. BS 2006B

FEATURES:

  • Overall size : 180L x 60W x 46H cms

  • Framework made up of rectangular / square M.S. Tubes.

  • 5cm foam padded fixed mattress covered with rexine.

  • Legs fitted with PVC stumps.

  • Finish : Pretreated & Epoxy powder coated.

MARKETING 55.PNG

Examination Couch

Model No. BS 2028

FEATURES:

  • Overall size : 1830L x 500W x 820H mm

  • Body Framework made up of 18G CRCA sheet.

  • Backrest adjustable on gas spring.

  • 3 drawers, 3 cabinets, One 6P apparatas

  • Optional S.S. / M.S Foot step.

MARKETING 91.PNG

Gynae Examination Couch

Model No. BS 2028A

FEATURES:

  • Overall size : 1830L x 500W x 820H mm

  • Body Framework made up of MS CRC tubes.

  • Two sectioned cushioned top.

  • Complete with the pair of S.S lithology rod made 12mm S.S Rod.

  • Back rest adjustable by hand lever.

  • Epoxy powder coated finish.

MARKETING 92.PNG

Labour Delivery Room Bed (Electric)

Model No. BS 2051

FEATURES:

  • Overall size : 1880L x 660W x 600 - 800H mm.

  • Tubular frame work mounted on 125mm dia control locking cators.

  • Three section top made of Bakelite sheet with 3 section mattress.

  • Trendlenburg / Reverse Trendlenburg positions adjustment through crank mechanism.

  • Height adjustment through imported hydraulic pump back section adjustment through crank mechanism Leg end section can slide under the main section.

  • Provided with a pair of Upholstery Lithonomy positions.

  • S.S telescopic IV rod.

  • Detachable S.S tray.

MARKETING 93.PNG

Obstetric Delivery Table (3 Section)

Model No. BS 2051A

FEATURES:

  • Approx Dimension : 72" L x 22" W x 30" H

  • Rectangular & square tube frame work mounted on PVC stumps.

  • Three sections cushioned top.

  • Backrest, seat, leg section adjustable by hand lever.

  • Complete with SS bowls.

  • Height adjustable a pair of knee crutches.

  • Pretreated  & epoxy powder coated.

MARKETING 94.PNG

Labour OBS / Gynae Table

Model No. BS 2054

FEATURES:

  • Overall approx maximum size : 72" x 27" x 30"

  • Frame work made of S.S tube.

  • Legs fitted with PVC stumps.

  • 3 section top made of Bakelite sheet.

  • Backrest section adjustable crank mechanism from back end.

  • Leg end section can slide under the main section.

  • The entire table top gives trendlenburg positions by crank system from back end.

  • Drop down S.S safety side railing are provided on 3 sides of the table.

  • Height adjustable a pair of foam padded knee crutches.

  • Patient hand grips made of S.S tubes.

  • Supplied with waste collecting S.S bowl on S.S bracket & one S.S I.V rod.

MARKETING 95.PNG

Hi-end Electro Operated C.Arm Compatible O.T. Table with Sliding Top

Model No. BS 3000

MARKETING 97.PNG
MARKETING 98.PNG
MARKETING 96.PNG

Foot Step (Single Step)

Model No. BS 2034

FEATURES:

  • Overall Approx size : 505 mm L x 305 mm W x 230 mm H.

  • Step made of CRCA Sheet fitted with Aluminium Tread flats by pop rivets.

  • Frame made of 1" x 18G CRCA Tube fitted with PVC stumps.

  • Finish : Pre-treated & Epoxy powder coated.

Also available in complete S.S​

MARKETING 132.PNG

Foot Step (Double Step)

Model No. BS 2035

FEATURES:

  • Overall Approx Step Size : 505 mm L x 305 mm W.

  • First step size 230 mm and second step size 450 mm.

  • Step made of CRCA sheet fitted with Aluminium Tread flats by pop rivets.

  • Frame made of 1" x 18 G CRC tubes fitted with PVC stumps.

  • Finish : Pre-treated & Epoxy powder coated.

Also available in complete S.S​

MARKETING 133.PNG
